Availability : 2 - 3 weeks

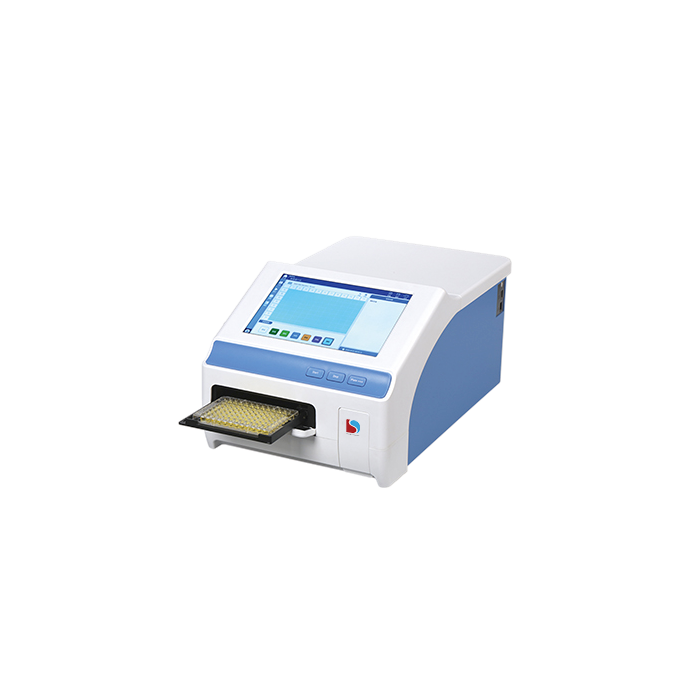

Microplate Reader MR-2000 important components and powerful microplate ELISA reader with standard accessories 96, and 384 wells plates. Covers the full wavelength range 200 to 1000 nm and measured as quickly as 6 second per well, which is significantly faster than other current microplate reader methods and different liquid lines can be used allowing flexible configurations including 3 washer of 2.5L washing bottle and 1 pcs 2.5L waste bottle different wash solutions . Temperature incubation, multiple shaking, well scan and reagent injectors make the MR-2000 the best platform for screening of photometric research and clinical applications. Can stored up to 16G or less 10,000 test records in a single unit. Maintain all important measuring parameters including quality and quantity curve fit, blank substration, endpoint, kinetic calculation and data evolution function. A multi-mode reader has several benefits for laboratories applications ranging from ELISAs to nucleic acid and protein quantitation to cell imaging. Together with multiple microplate services and detection modes into a single, more versatile unit may be an ideal choice especially if you have limited area.
| residual_volume | - |
|---|---|
| volume | - |
| model_type | 96-well |
| power | - |
| resolution | �0.2 nm |
| wavelength | 200 to 1000 nm |
| capacity | 3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle |
| model | MR-2000 |
|
Model |
MR-2000 |
|
Wavelength |
200 to 1000 nm |
|
Bottle |
3 pcs 2.5L washing bottle, 1pcs 2.5L waste bottle |
|
Light source |
Quartz-halogen lamp |
|
Optical filter |
405,450,492,630 nm |
|
Accuracy |
±2 nm |
|
Repetition |
±0.2 nm |
|
Display |
10 inch touch screen |
|
Read-out range |
0 to 4 OD |
|
Wavelength selection |
Monochromator |
|
Half-bandwidth of filters |
<2.5 nm |
|
Detector |
2 silicon photoelectric detector |
|
Test speed |
10s with 96-well (fast mode); 30s with 96-well (accurate mode) |
|
Shaking |
Linear; 3 options for speed |
|
Linearity @450nm |
0 to 2.5 Abs?±2% (96 well plates) |
|
Accuracy @450nm |
1.0% + 0.005 Abs (0 to 2.0 Abs)?2.0% [2.0 to 2.5 Abs) |
|
Precision @450nm |
CV < 0.5% accurate model?CV < 1.0% fast mode |
|
Incubator |
Ambient + 5°C to 45°C |
|
Storage |
16G, >10,000 test records stored |
|
Ports |
3 USB ports, for PC, printer and USB-disk |
|
Analysis software |
Reader-II |
|
Interface |
Integrated software or PC control software |
|
Dimensions |
300×500×290 mm |
|
Weight |
15 kg |
|
Electrical Requirement |
DC24V, 6.5A |
|
Catalogue No. |
4201505-04 |
