Trio Block Thermal Cyclers
Trio Block Thermal Cyclers

Trio Block Thermal Cyclers

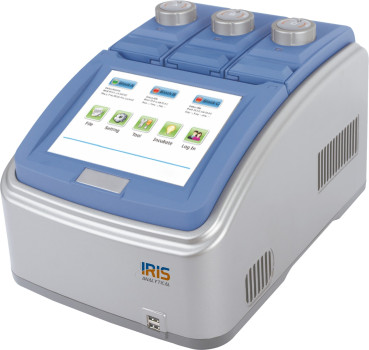

Trio Block Thermal Cyclers ITCM-4000T equipped with three independent blocks in one instrument. Both multiuser environments, as well as users with lower sample numbers but different samples, will enjoy this model. The three-block design and the specific Temperature Optimisation Step function support the fast optimization of ideal annealing temperatures with Fast Ramping and Best Accuracy, high-performance sample blocks.

Description
Specification
Technical

Trio Block Thermal Cyclers ITCM-4000T equipped with three independent blocks in one instrument. Both multiuser environments, as well as users with lower sample numbers but different samples, will enjoy this model. The three-block design and the specific Temperature Optimisation Step function support the fast optimization of ideal annealing temperatures with Fast Ramping and Best Accuracy, high-performance sample blocks.

  • Capabilities to run 3 different PCR program in 3 independent blocks controlled simultaneously
  • Quicker ramp rates allow more work to be done in a workday
  • Simple to program unit is compact in design and built to perform
  • Programming is in-built with large display and multiple pre-programmed templates supplied with the unit
  • Equipped with Built-in 11 standard program file template for rapidly and accurate necessary files
  • Throughout the program, it allows to edit files and showed the remaining time and running program in real-time
  • Support USB device with enormous storage capability, 10000 typical PCR files in free configurable folders and LAN for software updating also compatible with devices like mouse and keyboard
  • Meet the requirement of denaturation, enzyme cutting/enzyme link, and ELISA
  • Portable and User-friendly
  • Accurate data support and result from analysis record in GLP
  • Automatic restart mode and run the unfinished program after power failure
  • Meet the need for another testing hot lid temperature and hot lid work mode available
  • Bluetooth printer (option)
  • Assure password and data security along with user login management and three-tier permission
  • Connect numerous sets of PCR by single PC controlled
  • Email-alert function at the end of the experiment
  • To avoid vaporization and melting tubes are fits at different height by a step-less adjustable hot lid with pressure-protection
  • Fully adjustable heated lid

Model

ITCM-4005T

ITCM-4010T

Capacity

3×(32×0.2 ml)

Display

LCD, 8 inch, 800×600 pixels, TFT

Temperature Range

0 to 100℃

Number of Program

10000 +(USB FLASH)

Uniformity

≤± 0.4℃

≤± 0.3℃

Accuracy

≤± 0.3℃

≤± 0.2℃

Resolution

0.1℃

Number of Cycle

100

Number of Step

30

Holding Temperature

4℃

Temperature Control

BlockTube

Heating Rate

4.5℃/s

5℃/s

Cooling Rate

4℃/s

Ramping Rate Adjustable

0.1 to 4.5℃

0.1 to 5℃

Gradient Temp. Range

30 to 100℃

30 to 100℃

Gradient Uniformity

-

-

Gradient Spread

-

1 to 30℃

Gradient Mode

Independently set 3 gradient temperature

-

Hot Lid Height Adjustable

Step less Adjustable

Hot Lid Temperature

30 to 110℃

Connectivity

USB 2.0, LAN

Temp Increment/Decrement

0.1 to 10.0℃

Increase/Decrease in Time

1 Sec to 600 Sec

Power consumption

600 W

Overall Dimensions

390×270×255 mm

Net Weight

9 kg

Electrical Requirements

264 V AC, 47 to 63 Hz

Catalogue No.

600350503

600351003



Model

ITCM-4005T

ITCM-4010T

Capacity

3×(32×0.2 ml)

Display

LCD, 8 inch, 800×600 pixels, TFT

Temperature Range

0 to 100℃

Number of Program

10000 +(USB FLASH)

Uniformity

≤± 0.4℃

≤± 0.3℃

Accuracy

≤± 0.3℃

≤± 0.2℃

Resolution

0.1℃

Number of Cycle

100

Number of Step

30

Holding Temperature

4℃

Temperature Control

BlockTube

Heating Rate

4.5℃/s

5℃/s

Cooling Rate

4℃/s

Ramping Rate Adjustable

0.1 to 4.5℃

0.1 to 5℃

Gradient Temp. Range

30 to 100℃

30 to 100℃

Gradient Uniformity

-

-

Gradient Spread

-

1 to 30℃

Gradient Mode

Independently set 3 gradient temperature

-

Hot Lid Height Adjustable

Step less Adjustable

Hot Lid Temperature

30 to 110℃

Connectivity

USB 2.0, LAN

Temp Increment/Decrement

0.1 to 10.0℃

Increase/Decrease in Time

1 Sec to 600 Sec

Power consumption

600 W

Overall Dimensions

390×270×255 mm

Net Weight

9 kg

Electrical Requirements

264 V AC, 47 to 63 Hz

Catalogue No.

600350503

600351003



Image Product Detail Price (Exc. VAT)
Trio Block Thermal Cyclers TCM-4010T

#bls_620351003

Trio Block Thermal Cyclers TCM-4010T

Trio Block Thermal Cyclers TCM-4010T equipped with three independent blocks in one instrument. Both multiuser environments, as well as users with lower sample numbers but different samples, will enjoy this model.

The three-block design and

2 - 3 weeks Delivery.
$7,850.00

Trio Block Thermal Cyclers TCM-4005T

#bls_620350503

Trio Block Thermal Cyclers TCM-4005T

Trio Block Thermal Cyclers TCM-4005T equipped with three independent blocks in one instrument. Both multiuser environments, as well as users with lower sample numbers but different samples, will enjoy this model.

The three-block design and

2 - 3 weeks Delivery.
$7,250.00
