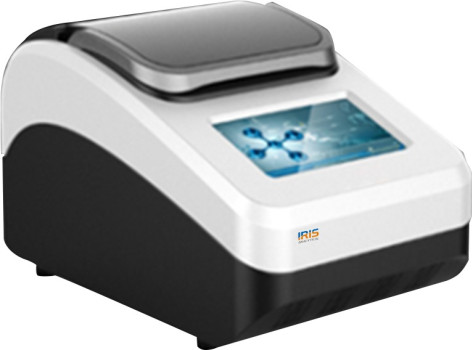

Advanced Thermal Cyclers ITCP-6000 Series
Advanced Thermal Cyclers ITCP-6000 has been used in rapid outdoor detection, all kinds of isothermal amplification of DNA/RNA. Mainly used in Gene amplification with the highest flexibility. Designed with 8×0.2 ml (20 to 100 µl) capacity along with 523 nm (FAM) 584 nm(VIC/HEX) detection wavelength and 470 nm (FAM) 525 nm(VIC/HEX) excitation wavelength. Rapidly set up runs and monitor amplification. Deliver the most sensitive, reliable detection for nucleic acid application.
Advanced Thermal Cyclers ITCP-6000 has been used in rapid outdoor detection, all kinds of isothermal amplification of DNA/RNA. Mainly used in Gene amplification with the highest flexibility. Designed with 8×0.2 ml (20 to 100 µl) capacity along with 523 nm (FAM) 584 nm(VIC/HEX) detection wavelength and 470 nm (FAM) 525 nm(VIC/HEX) excitation wavelength. Rapidly set up runs and monitor amplification. Deliver the most sensitive, reliable detection for nucleic acid application.
|
Model |
ITCP-6000 |
|
Capacity |
8×0.2 ml (20 to 100 µl) |
|
Display |
7 inch TFT with resistive touch screen |
|
Temperature Range |
RT +5°C to 100°C |
|
Detection Wavelength |
523 nm (FAM) 584 nm(VIC/HEX) |
|
Excitation Wavelength |
470 nm (FAM) 525 nm(VIC/HEX) |
|
Temperature Uniformity |
≤±0.1°C |
|
Temperature Accuracy |
≤±0.5°C |
|
Memory |
10000 + (USB Flash) |
|
Detection Speed |
≤ 3S |
|
Fluorescent intensity |
≤3% |
|
Communication |
USB2.0, RS232 |
|
Dimension |
300×260×170 mm |
|
Weight |
Light and Portable |
|
Electrical Requirement |
12 V DC |
|
Catalogue No. |
6004505-00 |
|
Model |
ITCP-6000 |
|
Capacity |
8×0.2 ml (20 to 100 µl) |
|
Display |
7 inch TFT with resistive touch screen |
|
Temperature Range |
RT +5°C to 100°C |
|
Detection Wavelength |
523 nm (FAM) 584 nm(VIC/HEX) |
|
Excitation Wavelength |
470 nm (FAM) 525 nm(VIC/HEX) |
|
Temperature Uniformity |
≤±0.1°C |
|
Temperature Accuracy |
≤±0.5°C |
|
Memory |
10000 + (USB Flash) |
|
Detection Speed |
≤ 3S |
|
Fluorescent intensity |
≤3% |
|
Communication |
USB2.0, RS232 |
|
Dimension |
300×260×170 mm |
|
Weight |
Light and Portable |
|
Electrical Requirement |
12 V DC |
|
Catalogue No. |
6004505-00 |
Get in touch for pricing and availability
